Securing web entrypoint from external threats
I'm currently hosting some private web services accessible from internet. In order to protect those apps, I needed a very secure way to protect the access to them.
As you may already know, there are tons of bots that continuously scan all public internet IPs for potential vulnerabilities. From open ports, insecure web services or security breach. There are private organizations that allow to discover those vulnerabilities like Shodan. In my particular case, this is the only information that they could collect from my IP gateway :
So I need to expose my services and access them from anywhere on internet without too much complexity while making sure I'm the only on that can use them and nobody else could access my data.
Theory
I'm using Zero trust security model. So by default no one and no device are trusted.
The first step is to set firewall to drop all incoming traffic, close all network port, disable login for all users, remove all unnecessary package and running demons.
Warning : You need to be extremely careful when you close everything or you could be locked out of your network/server without possibility to regain access.
Layout
So this is a Top Level View of my network layout :
Internet --> Public IP --> Firewall --> Gateway Server --> Ingress service --> Private Network
Implementation
Step by step
Public IP
Well here there is not much to secure. The IP is statically provided by my ISP and is publicly available and reachable.
Firewall
This device if the first line of security.
As mentioned before, I'm using Zero trust security model, so the first step is to drop all incoming traffic by default. Now nobody can reach me from the outside but the returning traffic can't either. When I make a request to an outside service, the returned data is dropped ate the firewall level. Not very useful indeed.
The second step is then to allow returning traffic (while keep dropping all other traffic). I can be done with simple Network Address Translation or NAT. This way when a server within the private network make a request to a public service, the response can flow trough the firewall securely. This can come handy if you want to update packages on your server ! All firewall support natively NAT so it's not very hard to activate it.
Then I want to allow public access to my services which expose HTTPS ports, so 443/tcp. I have enabled port forwarding on my firewall so that when incoming traffic/request arrive on the port 443 with the TCP protocol, it is forwarded to my gateway server within my private network.
Note: The port exposed by my gateway server has no impact on the forward rule. It could be
443to be coherent or it could be8888. It doesn't matter.
Gateway Server
My current gateway server is a Linux based server. The distribution used in my case is irrelevant.
Local firewall
It ship with firewalld pre-installed witch allow me to have a local firewall on my server. Since my gateway receive traffic from the outside world, I need to control what can enter and leave this server.
For my setup I choose to keep it simple. I'm only allowing incoming traffic from port 443/tcp (and 22/tcp from my private network to administrate the server with SSH). Then I'm allowing outgoing traffic (like NAT) for the returning flux.
With the firewalld following command line I can see my current configuration :
I get :public (active)
target: default
icmp-block-inversion: no
interfaces: eth0
sources:
services: https ssh
ports:
protocols:
forward: no
masquerade: no
forward-ports:
source-ports:
icmp-blocks:
rich rules:
Ingress service
I'm using NGINX as my ingress service. It runs on my gateway server. His purpose is to route and filter incoming HTTPS traffic.
Filter non wanted traffic
First step is to filter out all HTTPS that is not going to my exposed service. A simple first step is to drop by default all incoming requests. In a default site configuration /etc/nginx/conf.d/default.conf, I have :
The first line with le listen keyword tells NGINX to listen on port 443 and to begin a secure connexion with the client.
In this configuration server_name _; match all/undefined Server Name Identification or SNI within incoming requests.
The return 444; line return the HTTP code 444 which tells NGINX to close the connection immediately.
Since I'm using HTTPS, I need to provide a X.509 certificate for TLS communications. I made a little joke on this one because, you know, if you are a stranger trying to access my private stuff GTFO. This give me :
server {
listen 443 default_server ssl;
server_name _;
ssl_certificate /etc/pki/tls/certs/go.fuck.yourself.now.crt;
ssl_certificate_key /etc/pki/tls/private/go.fuck.yourself.now.key;
return 444;
}
I'm currently using a overkill RSA 4096 bits long private key.
Now if I try to make a dumb request to my ingress service like :
I get :* Trying XXX.XXX.XXX.XXX...
* TCP_NODELAY set
* Connected to mygateway.local (XXX.XXX.XXX.XXX) port 443 (#0)
* ALPN, offering h2
* ALPN, offering http/1.1
* successfully set certificate verify locations:
* CAfile: /etc/ssl/cert.pem
CApath: none
* TLSv1.2 (OUT), TLS handshake, Client hello (1):
* TLSv1.2 (IN), TLS handshake, Server hello (2):
* TLSv1.2 (IN), TLS handshake, Certificate (11):
* TLSv1.2 (IN), TLS handshake, Server key exchange (12):
* TLSv1.2 (IN), TLS handshake, Server finished (14):
* TLSv1.2 (OUT), TLS handshake, Client key exchange (16):
* TLSv1.2 (OUT), TLS change cipher, Change cipher spec (1):
* TLSv1.2 (OUT), TLS handshake, Finished (20):
* TLSv1.2 (IN), TLS change cipher, Change cipher spec (1):
* TLSv1.2 (IN), TLS handshake, Finished (20):
* SSL connection using TLSv1.2 / ECDHE-RSA-AES256-GCM-SHA384
* ALPN, server accepted to use http/1.1
* Server certificate:
* subject: C=FR; L=Paris; O=Wabbit; CN=go.fuck.yourself.now; emailAddress=admin@wabbit
* start date: May 29 15:55:36 2021 GMT
* expire date: May 29 15:55:36 2022 GMT
* issuer: C=FR; L=Paris; O=Wabbit; CN=wabbit; emailAddress=admin@wabbit
* SSL certificate verify ok.
> GET / HTTP/1.1
> Host: dumb.example.org
> User-Agent: curl/7.64.1
> Accept: */*
>
* Empty reply from server
* Connection #0 to host mygateway.local left intact
curl: (52) Empty reply from server
* Closing connection 0
My ingress server send me the certificate with Common Name go.fuck.yourself.now for secure communication. My client make a GET request on the / URI path with the host dumb.example.org.
Since my ingress server is not configured to accept request for any service with the name dumb.example.org, it close the connexion without warning and my client get an Empty reply from server.
Enhance secure connexion
By default NGINX is very open in term of protocols and cipher allowed to make secure connexion. Inside the NGINX main configuration file, located at /etc/nginx/nginx.conf, in the http section, I have replaced the ssl_ options with :
Now my ingress service will only allow only TLS 1.2 minimum (up to 1.3) with only HIGH, not NULL and not MD5 ciphers to establish secure connexions with the client. The ssl_prefer_server_ciphers for the client to tries ciphers with the order provided by the ingress service.
Log everything
By default NGINX logs all request inside the /var/log/nginx/access.log file and all errors in /var/log/nginx/error.log. I have checked if it is the case for my instance. In the main configuration file /etc/nginx/nginx.conf, I have :
log_format main '$remote_addr - $remote_user [$time_local] "$request" '
'$status $body_bytes_sent "$http_referer" '
'"$http_user_agent" "$http_x_forwarded_for"';
access_log /var/log/nginx/access.log main;
In /var/log/nginx/access.log I can see my test request from earlier :
Expose service
Now that I have all my connexions filtered, I want to expose my services. To do that I added a new config file inside /etc/nginx/conf.d with the following content :
server {
listen 443 ssl;
server_name myapp.example.org;
ssl_certificate /etc/pki/tls/certs/myapp.example.org.crt;
ssl_certificate_key /etc/pki/tls/private/myapp.example.org.key;
location / {
proxy_pass https://myapp.local;
proxy_set_header Host $host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
}
}
If a request arrives with the SNI myapp.example.org it get accepted by the ingress service. NGINX is going to use the provided myapp.example.org.crt certificate to establish secure connexion with the client. Then it will forward all the traffic to my private app at https://myapp.local using NGINX proxy configuration.
Identifying clients
Since I want to access my apps from anywhere outside my private network, I need to allow incoming requests from any potential public IPs. But I still want to be able to identify my devices among all public IPs.
I have decided to implement client certificate authentication. I have generated a unique private X.509 certificate for each of my devices (PC, phone, ...) and installed them.
I have then configured my ingress service to request client certificate when a client wish to access an exposed service. Enhancing the previous configuration I get :
server {
listen 443 ssl;
server_name myapp.example.org;
ssl_certificate /etc/pki/tls/certs/myapp.example.org.crt;
ssl_certificate_key /etc/pki/tls/private/myapp.example.org.key;
# make verification optional, so we can display a 403 message to those
# who fail authentication
ssl_verify_client on;
ssl_client_certificate /etc/pki/tls/certs/users.example.org.crt;
location / {
proxy_pass https://myapp.local;
proxy_set_header Host $host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
}
}
ssl_verify_client force user to provide a client certificate for authentication. If not, the connexion is closed with code 400.
ssl_certificate_key provides the Certificate Authority or CA who have signed the clients certificates.
Now if I try to make a request on myapp.example.org without the client certificate :
HTTP/1.1 400 Bad Request
Server: nginx/1.20.1
Date: Sun, 10 Oct 2021 17:35:05 GMT
Content-Type: text/html
Content-Length: 237
Connection: close
<html>
<head><title>400 No required SSL certificate was sent</title></head>
<body>
<center><h1>400 Bad Request</h1></center>
<center>No required SSL certificate was sent</center>
<hr><center>nginx/1.20.1</center>
</body>
</html>
The ingress server reject my request with code 400 because I have not provided the required client certificate.
Let's try again while providing the client certificate :
I get :HTTP/1.1 302 Found
Server: nginx/1.20.1
Date: Sun, 10 Oct 2021 17:35:36 GMT
Content-Type: text/plain; charset=utf-8
Content-Length: 30
Connection: keep-alive
Content-Language: en
Location: /login
Referrer-Policy: same-origin
Vary: Accept, Accept-Encoding
X-Content-Type-Options: nosniff
X-Frame-Options: deny
X-Xss-Protection: 1; mode=block
Found. Redirecting to /login
It works !
Fail2ban
Now that I can securely access my private services, I still want to prevent unwanted users or bots to brute force or DDOS my gateway server.
I'm currently using Fail2ban to block those behaviours. It constantly scan my ingress service access logs to identify malicious requests made by public clients.
I have created a custom filter that match all request returning with a 444 code. If you remember well this code is returned by my NGINX configuration if client request an unknown SNI.
The filter configuration (/etc/fail2ban/filter.d/nginx-444.conf) looks like :
Then I have a jail that implement this filter. The /etc/fail2ban/jail.d/block-malicious-users.conf contains :
[DEFAULT]
ignoreip = 127.0.0.1 XXX.XXX.XXX.XXX YYY.YYY.YYY.YYY
findtime = 3600
bantime = 31536000
maxretry = 1
[nginx-444]
enabled = true
logpath = /var/log/nginx/*.log
# Ban IP
action = %(banaction_allports)s
If Fail2ban found, in the logpath file at least maxretry failed attempts in a findtime window of time. It will ban the IP for bantime seconds.
Notes: I have ignored the localhost address, my administration PC IP (
XXX.XXX.XXX.XXX) and the gateway public IPYYY.YYY.YYY.YYYto prevent Fail2ban from banning myself when I'm testing the setup.
Check banned IPs
I can already see banned clients from previous failed requests. When using Fail2ban status command :
I get :Status for the jail: nginx-444
|- Filter
| |- Currently failed: 0
| |- Total failed: 3
| `- File list: /var/log/nginx/error.log /var/log/nginx/custom-access.log /var/log/nginx/access.log
`- Actions
|- Currently banned: 3
|- Total banned: 3
`- Banned IP list: XXX.XXX.XXX.XXX YYY.YYY.YYY.YYY ZZZ.ZZZ.ZZZ.ZZZ
Checking firewalld for drop rules from those IPs with command :
I get :public (active)
target: default
icmp-block-inversion: no
interfaces: eth0
sources:
services: dhcpv6-client https mdns ssh
ports:
protocols:
forward: no
masquerade: no
forward-ports:
source-ports:
icmp-blocks:
rich rules:
rule family="ipv4" source address="XXX.XXX.XXX.XXX" port port="0-65535" protocol="tcp" reject type="icmp-port-unreachable"
rule family="ipv4" source address="YYY.YYY.YYY.YYY" port port="0-65535" protocol="tcp" reject type="icmp-port-unreachable"
rule family="ipv4" source address="ZZZ.ZZZ.ZZZ.ZZZ" port port="0-65535" protocol="tcp" reject type="icmp-port-unreachable"
Looks good !

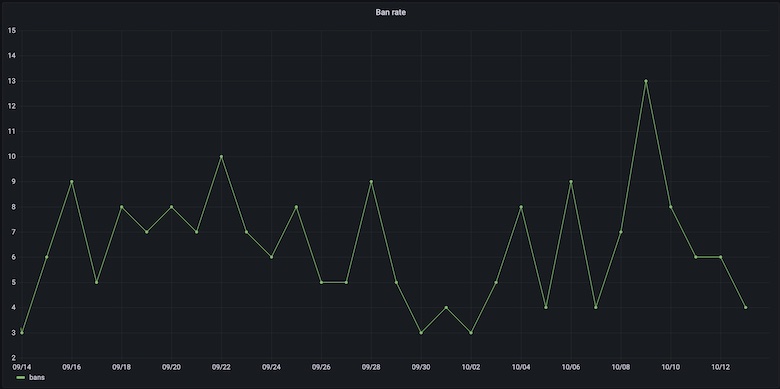

I usually ban around 6.5 IP per day :
Conclusion
On each of my entrypoint layers I have implemented :
-
Firewall :
- Drop all incoming traffic
- NAT
- Port forwarding on port
443/tcp
-
Gateway Server :
-
Ingress service :
- Drop all traffic with unknown SNI
- Use only secure TLS protocols and ciphers
- Enforce client certificate for authentication
- Use state of the art X.509 certificates
